Downwinding Workflow Example 3:
A rectangular domain and a pre-defined river network to be used for the DEM processing
Calculating slopes with a downwinding approach to be consistent with ParFlow’s OverlandFlow boundary conditon.
This requires two inputs: (1) a DEM and (2) a river mask
This example usese the test domain from Condon and Maxwell (2019) (https://doi.org/10.1016/j.cageo.2019.01.020) the datasets for this domain are provided with the PriorityFlow R package to use your own datasets you should have a DEM and mask files formatted as a matrices with [i,j] corresponding to the x and y axes of the domain (i.e. DEM[0,0] is the lower left corner of the domain and DEM[nx - 1,ny - 1] is the upper right)
import numpy as np
import matplotlib.pyplot as plt
from priority_flow import (
init_queue,
d4_traverse_b,
load_dem,
load_river_mask,
drainage_area,
calc_subbasins,
slope_calc_upwind,
stream_traverse,
find_orphan,
)
from parflow.tools.io import read_pfb, write_pfb
# DEM processing
ep = 0.01 # epsilon for stream/DEM processing
# Slope scaling
maxslope = 0.5 # maximum slope; set to -1 to disable
minslope = 1e-5 # minimum slope; set to -1 to disable
scale = 0.1 # max ratio of |secondary| / |primary| (secondaryTH)
# River and subbasin size for slope calculations
sub_th = 100 # area threshold (cells) for subbasin delineation
riv_th = sub_th # optional: threshold for river mask for slope processing
riv_method = 3 # 0: none, 1: scale river secondary, 2: basin mean, 3: reach mean
mrg_th = 10 # merge threshold for small subbasins
# Grid dimensions for slopes
dx = 1000.0
dy = 1000.0
# Run name for outputs
runname = "Test"
# -------------------------------------------------------------------------
# Load DEM and river mask
# -------------------------------------------------------------------------
DEM = load_dem()
river_mask = load_river_mask()
nx, ny = DEM.shape
print(f"Domain size: nx={nx}, ny={ny}")
Domain size: nx=172, ny=215
# Plot the inputs:

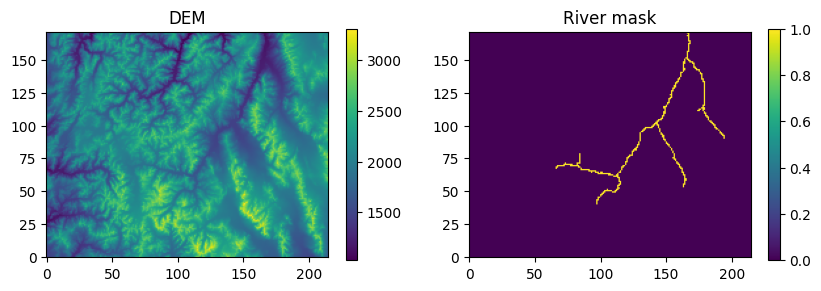

fig, axes = plt.subplots(1, 2, figsize=(10, 3))
im0 = axes[0].imshow(DEM, cmap='viridis', origin='lower')
axes[0].set_title("DEM")
plt.colorbar(im0, ax=axes[0])
im1 = axes[1].imshow(river_mask, cmap='viridis', origin='lower')
axes[1].set_title("River mask")
plt.colorbar(im1, ax=axes[1])
<matplotlib.colorbar.Colorbar at 0x1472f6d709b0>
Process the DEM:
Initialize the queue withriver cells that fall on the border
Traverse the stream network filling sinks and stair stepping around D8 neigbhors
Look for orphan branches and continue processing until they are all connected
Use the processed river cells as the intialize a new queue
process hillslopes from there
#1. initialize the queue with river cells that fall on the border
init = init_queue(DEM, initmask=river_mask)
No domain mask provided using entire domain
No border provided, setting border using domain mask
#2. take a first pass at traversing the streams
trav1 = stream_traverse(
dem=DEM,
mask=river_mask,
queue=init["queue"].copy(),
marked=init["marked"].copy(),
basins=init["basins"].copy(),
printstep=False,
epsilon=ep,
)
first_pass_pct = (
np.sum(trav1["marked"] * river_mask) / np.sum(river_mask) * 100.0
if np.sum(river_mask) > 0
else 0.0
)
print(f"First Pass: {first_pass_pct:.1f} % river cells processed")
First Pass: 100.0 % river cells processed

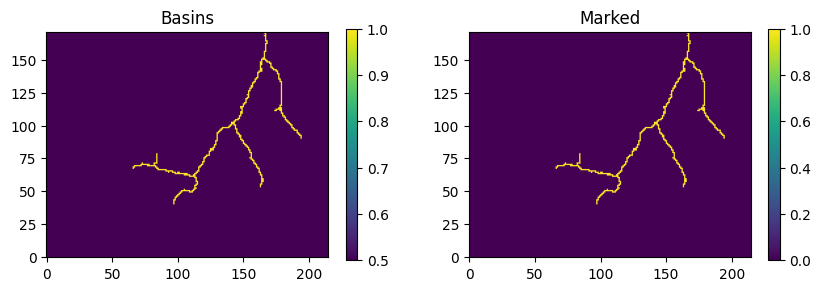

fig, axes = plt.subplots(1, 2, figsize=(10, 3))
im0 = axes[0].imshow(trav1['basins'], vmin=0.5, vmax=np.nanmax(trav1['basins']), cmap='viridis', origin='lower')
axes[0].set_title("Basins")
plt.colorbar(im0, ax=axes[0])
im1 = axes[1].imshow(trav1['marked'], cmap='viridis', origin='lower')
axes[1].set_title("Marked")
plt.colorbar(im1, ax=axes[1])
plt.show()
#3. look for 'orphaned' branches and continue traversing until they are all connected
# orphaned branches are portions of the river network that are connected diagonally (i.e. without any d4 neighbors)
norphan = 1
lap = 1
while norphan > 0:
orphan = find_orphan(
dem=trav1["dem"],
mask=river_mask,
marked=trav1["marked"],
)
norphan = int(orphan["norphan"])
print(f"Lap {lap}: {norphan} orphans found")
if norphan > 0:
trav2 = stream_traverse(
dem=trav1["dem"],
mask=river_mask,
queue=orphan["queue"],
marked=trav1["marked"],
step=trav1["step"],
direction=trav1["direction"],
basins=trav1["basins"],
printstep=False,
epsilon=ep,
)
trav1 = trav2
lap += 1
else:
print("Done! No orphan branches found")
final_pass_pct = (
np.sum(trav1["marked"] * river_mask) / np.sum(river_mask) * 100.0
if np.sum(river_mask) > 0
else 0.0
)
print(f"Final pass: {final_pass_pct:.1f} % river cells processed")
No Orphans Found
Lap 1: 0 orphans found
Done! No orphan branches found
Final pass: 100.0 % river cells processed

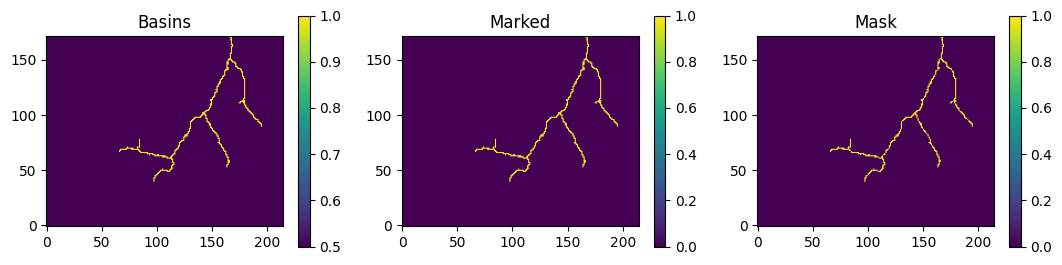

fig, axes = plt.subplots(1, 3, figsize=(13, 3))
im0 = axes[0].imshow(trav1['basins'], vmin=0.5, vmax=np.nanmax(trav1['basins']), cmap='viridis', origin='lower')
axes[0].set_title("Basins")
plt.colorbar(im0, ax=axes[0])
im1 = axes[1].imshow(trav1['marked'], cmap='viridis', origin='lower')
axes[1].set_title("Marked")
plt.colorbar(im1, ax=axes[1])
im2 = axes[2].imshow(trav1['mask'], cmap='viridis', origin='lower')
axes[2].set_title("Mask")
plt.colorbar(im1, ax=axes[2])
plt.show()
# 4.initialize the queue with every cell on the processed river boundary
# to do this use the marked rivers from the last step plus the edge cells
# as the boundary and the mask
inittemp = init_queue(DEM) # rectangular boundary mask
riv_border = inittemp["marked"] + trav1["marked"]
riv_border[riv_border > 1] = 1

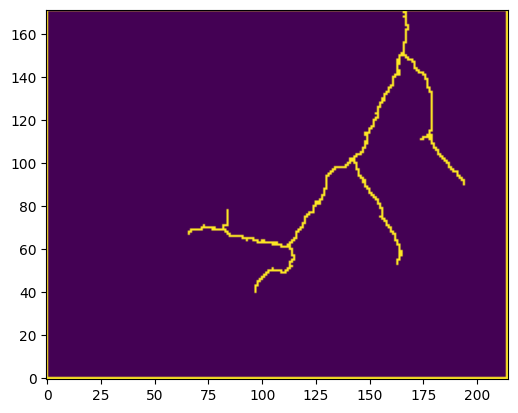

plt.imshow(riv_border, cmap='viridis', origin='lower')
No init mask provided all border cells will be added to queue
No domain mask provided using entire domain
No border provided, setting border using domain mask
<matplotlib.image.AxesImage at 0x1472f6342120>
init2 = init_queue(trav1["dem"], border=riv_border)
No init mask provided all border cells will be added to queue
No domain mask provided using entire domain
#5. process all the cells off the river usins the river as the boundary
trav_hs = d4_traverse_b(
dem=trav1["dem"],
queue=init2["queue"].copy(),
marked=init2["marked"].copy(),
direction=trav1["direction"].copy(),
basins=trav1["basins"].copy(),
step=trav1["step"].copy(),
epsilon=ep,
)
from matplotlib.colors import LinearSegmentedColormap
# Extract arrays
marked_HS = trav_hs['marked']
step = trav_hs['step']
basins = trav_hs['basins']
marked_overlay = trav1['marked']
# Create white → red colormap
maskcol = LinearSegmentedColormap.from_list("maskcol", ["white", "red"])

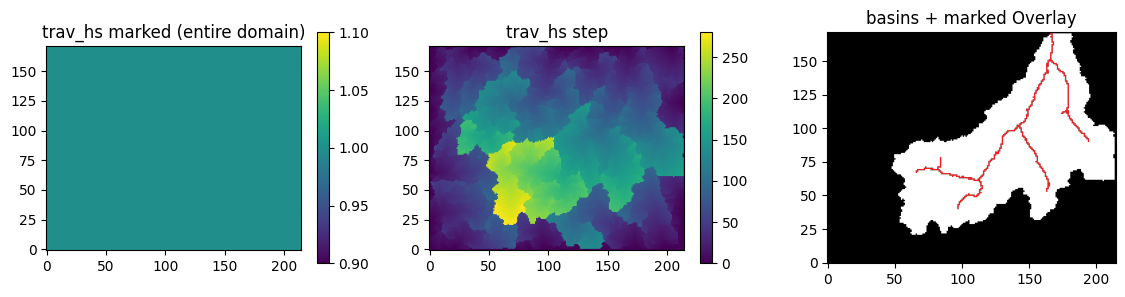

fig, axes = plt.subplots(1, 3, figsize=(14, 3))
im0 = axes[0].imshow(marked_HS, origin='lower', cmap='viridis')
axes[0].set_title("trav_hs marked (entire domain)")
plt.colorbar(im0, ax=axes[0])
im1 = axes[1].imshow(step, origin='lower', cmap='viridis')
axes[1].set_title("trav_hs step")
plt.colorbar(im1, ax=axes[1])
axes[2].imshow(basins, vmin=0.5, vmax=np.nanmax(basins), cmap='gray', origin='lower')
overlay = marked_overlay.copy()
overlay[overlay == 0] = np.nan # make zeros transparent
axes[2].imshow(overlay, vmin=0.5, vmax=1, cmap=maskcol, origin='lower', alpha=0.9)
axes[2].set_title("basins + marked Overlay")
plt.show()
Calculate the slopes
Note this step also fixes the directions of the borders because directions are not provided when the queue is initialized
Option 1: just calcualte the slopes for the entire domain with no distinction between river and hillslope cells
In this example secondary slope scaling is turned on and the secondary Slopes in the secondary direction are set to a maximum of 0.1*primary flow direction To calculate only slopes in the primary flow direction set the secondaryTH to 0 Additionally primary slopes are limited by min slope and max slope thresholds
slopes_uw = slope_calc_upwind(
dem=trav_hs["dem"].copy(),
direction=trav_hs["direction"].copy(),
dx=dx,
dy=dy,
minslope=minslope,
maxslope=maxslope,
secondary_th=scale,
)
No mask provided, initializing mask for complete domain
upwinding slopes
Limiting slopes to maximum absolute value of 0.5
Limiting the ratio of secondary to primary slopes 0.1
WARNING: 9 Flat cells found
After processing: 0 Flat cells left
Limiting slopes to minimum 1e-05
Option 2:
If you would like to handle river cells differently from the rest of the domain– NOTE the ‘river cells’ here will be determined based on drainage area thresholds after not the orinigal rive mask provided.
# Calculate the drainage area
area = drainage_area(trav_hs["direction"], printflag=False)
# Define subbasins for calcualting river reach slopes
# the riv_th here is the drainage area threshold for splitting the river network branches
# when you do this you can still end up with subbasins with drainage areas less than the riv_th
# when multiple branches come together in a small area.
# To fix this you can set a merge threshold (merge_th) so that subbains with areas < merge_th autmoatically get merged with their downstream neighbor
subbasin = calc_subbasins(
trav_hs["direction"].copy(),
area=area,
mask=None,
riv_th=sub_th,
merge_th=mrg_th,
)
WARNING: non-zero merge thresholds are not compatible with the RiverSmooth function
#plot the resulting subbasins and rivers
temp = subbasin['RiverMask'].copy()
temp[temp == 0] = np.nan

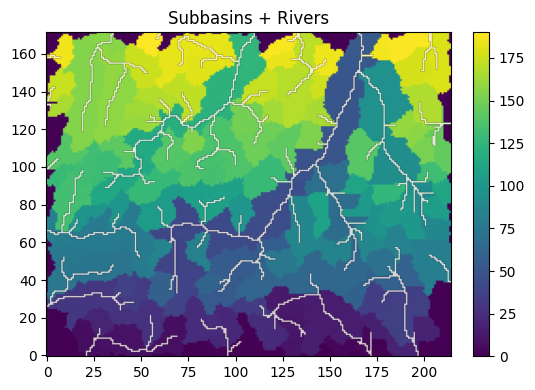

fig, ax = plt.subplots(figsize=(6, 4))
# Base layer
im0 = ax.imshow(subbasin['subbasins'],
cmap='viridis',
origin='lower')
# Overlay (rivers)
im1 = ax.imshow(temp * 2,
cmap='Reds', # different colormap helps visibility
origin='lower',
alpha=0.8) # transparency like add=TRUE overlay
ax.set_title("Subbasins + Rivers")
plt.colorbar(im0, ax=ax, fraction=0.046, pad=0.04)
plt.tight_layout()
plt.show()
# Calculate the slopes
# The "river_method' flag here determines how the river cells will be handeled (e.g. using subbasin averages along reaches). Refer to the top of this script or the function for details.
slopes_uw = slope_calc_upwind(
dem=trav_hs["dem"].copy(),
direction=trav_hs["direction"].copy(),
dx=dx,
dy=dy,
minslope=minslope,
maxslope=maxslope,
secondary_th=scale,
river_method=riv_method,
rivermask=subbasin["RiverMask"].copy(),
subbasins=subbasin["subbasins"].copy(),
)
No mask provided, initializing mask for complete domain
upwinding slopes
Limiting slopes to maximum absolute value of 0.5
Limiting the ratio of secondary to primary slopes 0.1
River Method 3: assigning average river slope to river cells by watershed
Scaling secondary slopes along river mask to 0 * primary slope
WARNING: 9 Flat cells found
After processing: 0 Flat cells left
Limiting slopes to minimum 1e-05
Option 2b:
Alternate more advanced approach: Define a river mask separate from the subbasin river mask and use this for the slope calculations. If you do this the average slopes will still be calculated by subbasin using the sub_th, but you can apply those average sloeps to more river cells by setting a lower threshold here. This is the ‘riv_th’ set at the top if you set riv_th=sub_th at the top this will have the same effect as just running the slope calc with the subbasin[‘RiverMask’]
rivers = np.zeros_like(area)
rivers[area < riv_th] = 0
rivers[area >= riv_th] = 1
# plot the subbasins with the new river mask to check that the threshold is good
temp = rivers.copy()
temp[temp == 0] = np.nan
fig, ax = plt.subplots(figsize=(6, 4))
# Base layer
im0 = ax.imshow(subbasin['subbasins'],
cmap='viridis',
origin='lower')
# Overlay (rivers)
im1 = ax.imshow(temp * 2,
cmap='Reds', # different colormap helps visibility
origin='lower',
alpha=0.8) # transparency like add=TRUE overlay
ax.set_title("Subbasins + Rivers")
plt.colorbar(im0, ax=ax, fraction=0.046, pad=0.04)
plt.tight_layout()
plt.show()
slopes_uw = slope_calc_upwind(
dem=trav_hs["dem"].copy(),
direction=trav_hs["direction"].copy(),
dx=dx,
dy=dy,
minslope=minslope,
maxslope=maxslope,
secondary_th=scale,
river_method=riv_method,
rivermask=rivers,
subbasins=subbasin["subbasins"].copy(),
)
No mask provided, initializing mask for complete domain
upwinding slopes
Limiting slopes to maximum absolute value of 0.5
Limiting the ratio of secondary to primary slopes 0.1
River Method 3: assigning average river slope to river cells by watershed
Scaling secondary slopes along river mask to 0 * primary slope
WARNING: 9 Flat cells found
After processing: 0 Flat cells left
Limiting slopes to minimum 1e-05

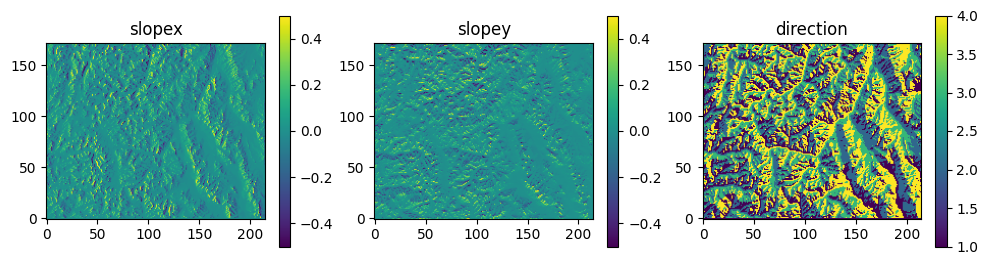

#Look at the slopes and directions
fig, axes = plt.subplots(1, 3, figsize=(12, 3))
im0 = axes[0].imshow(slopes_uw['slopex'], cmap='viridis', origin='lower')
axes[0].set_title("slopex")
plt.colorbar(im0, ax=axes[0])
im1 = axes[1].imshow(slopes_uw['slopey'], cmap='viridis', origin='lower')
axes[1].set_title("slopey")
plt.colorbar(im1, ax=axes[1])
im2 = axes[2].imshow(slopes_uw['direction'], cmap='viridis', origin='lower')
axes[2].set_title("direction")
plt.colorbar(im2, ax=axes[2])
plt.show()
# Calculate the drainage area
area = drainage_area(slopes_uw["direction"], printflag=False)
# Save slope data as PFB files:
write_pfb("slopex.pfb", slopes_uw["slopex"])
write_pfb("slopey.pfb", slopes_uw["slopey"])
